Special Configurations
Specialty Ramps for special requirements
KCI manufactures ramps for special requirements. If you find you have unique needs we can provide a custom solution at an affordable price. KCI will endeavor to design all the unique features that are included in our other ramp designs, into your custom solution.

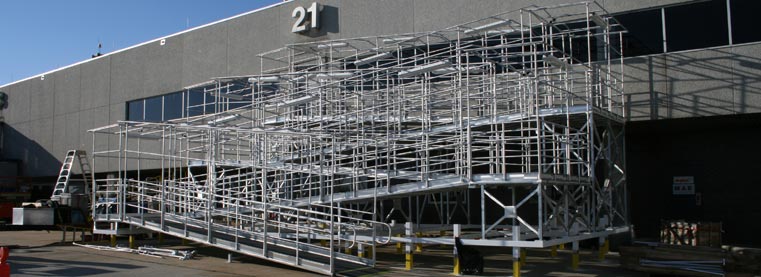

Aside from the standard ramps we produce, KCI also manufactures ramps for special requirements, for permanent, or temporary use. The width of these ramps can range from 36″ to 48″ wide depending on your needs and traffic usage. Slope is a function of space and ADA requirements. These terminal ramps use our special foot design to accommodate unlevel ground. The heights have ranged up to 17′. Units can be equipped with optional canopies, side curtains, and lights if desired.
| Length: | Varies |
| Height: | Varies |
| Width: | Varies |
| Weight: | Varies |
| Wheels: | If applicable, all pneumatic, industrial foam filled |
| Brake: | If applicable, Dead Man style |
| Tow Bar: | Included if applicable |
| Chocks: | Included if applicable |
| Canopy: | Optional |
| Range: | Up to 17′ |
| Degree of slope: | Is a function of space and ADA requirements |
| FAA Requirements: | Meets or exceeds all requirements as stated in A/C No: 150/5220-21C |
| Walking Surface: | 36″ or 48″ wide Slip-resistant surface |
| Wind Standards: | Meets 90 MPH FAA requirement when stowed |
| Warranty: | 2-year warranty on manufacturing and material defects |
Custom Terminal Ramps
Custom Terminal Ramps
Custom terminal ramps built to suit! Our capabilities are second to none when it comes to getting your passengers safely to the ground. Our custom terminal ramps can be used as a temporary solution during airport improvement construction, or as a permanent fix. Available in multiple configurations, sizes, and color options. Optional lighting makes ramp usable at night, or in unfavorable weather.
| Length: | Custom to your application. |
| Height: | Custom to your application. |
| Width: | Custom to your application. |
| Adjustable Gates: | Provided |
| Transition Plate: | A plate is provided to span the gap from the ramp to the terminal gate. It works like a dock plate. The plate is hinged to the ramp and lifted up when the ramp is not in use. |
| Tie Downs: | Adjustable anchored feet |
| Lights: | Optional: Lights are cold weather exterior T8 florescent, 110 volt. Light switch and 20′ extension cord with plug included. |
| Weight: | Weight will vary depending on size, and application. |
| Wheels: | All pneumatic, industrial foam filled, if applicable. |
| Brake: | Dead Man style, if applicable |
| Tow Bar: | Included if mobile. |
| Stabilizers: | Custom to application. |
| Canopy: | Optional, multiple colors available. |
| Side Curtains: | Optional, multiple colors available. |
| Range: | Custom to your application, although most terminal ramps are set at a fixed height. |
| FAA Requirements: | Meets or exceeds all requirements as stated in A/C No: 150/5220-21C |
| Walking Surface: | 36 or 48″ wide, slip-resistant surface |
| Walking Dimensions: | The ramp sections are 36 or 48″ wide, and the mid platforms are 4′ 6″ wide x 9’2″ long |
| Wind Standards: | Meets 90 MPH FAA requirement. |
| Warranty: | 2-year warranty on manufacturing (see details below) |
