**Range adjustable to suit individual needs; Length dependant on ramp range**

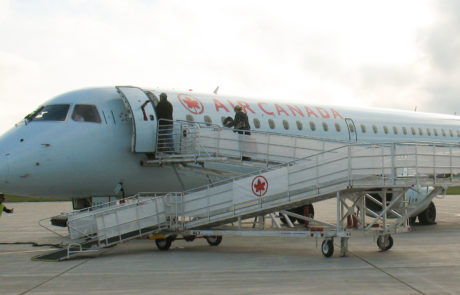

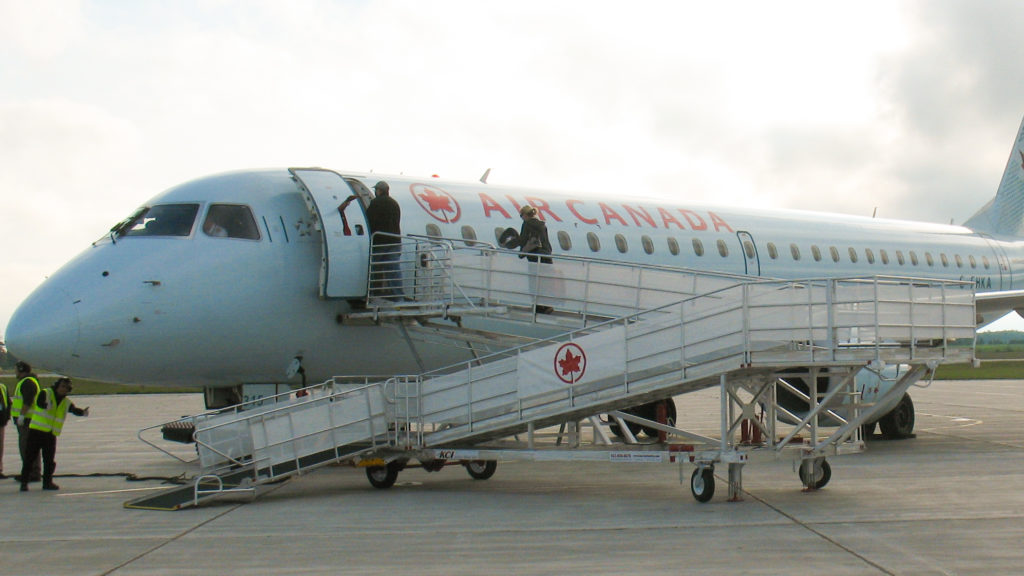

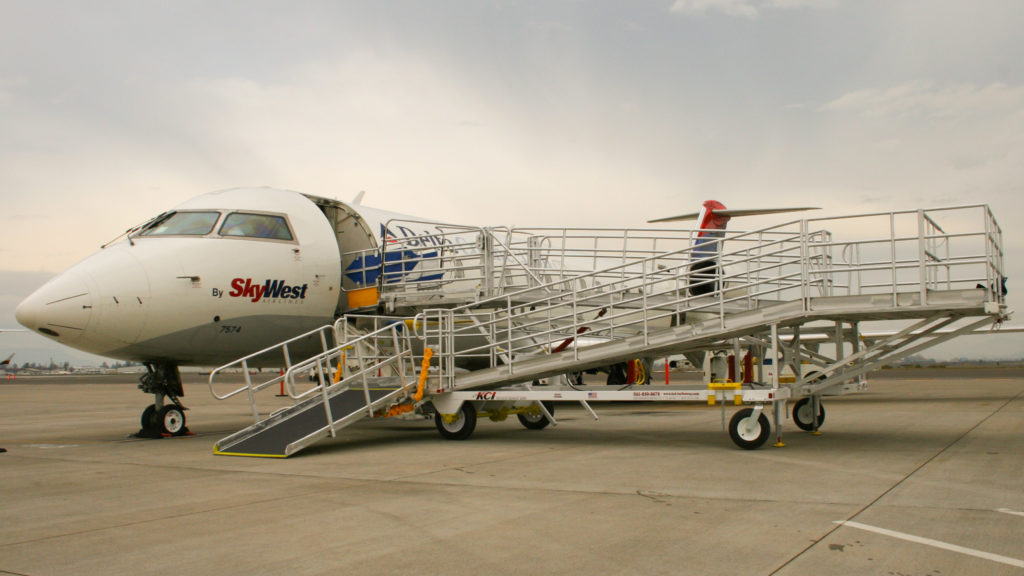

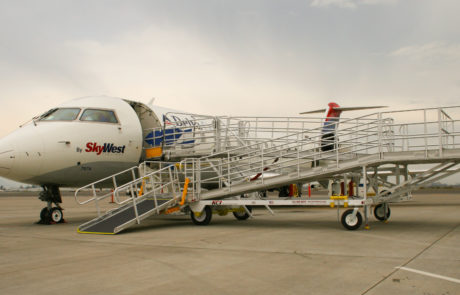

The KCI DAQ ramps allow for a seamless boarding process for all aircraft from the Q200/400, up to the B737. For use with the CRJ 700/900 and smaller aircraft a Mobile Bridge Adapter is required; the DAQ ramp has an extended turn deck to allow for storage of the adapter, and is gated to prevent access to the adapter by the boarding passengers.

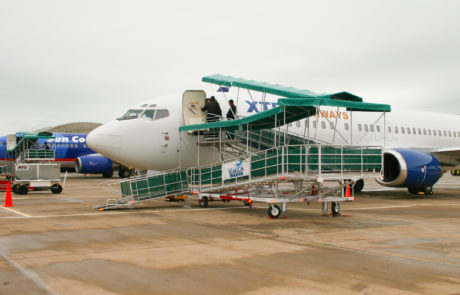

This ramp can be used on all aircraft ranging in height from a Q200/400 to B737
DAQ Passenger Ramps
| Length: | 30 feet ** (32ft w/canopy)** |
| Height: | 127″ stowed |
| Width: | 119 1/2″ |
| Weight: | 30xx series aluminum frame: 3,079 pounds 20xx series steel frame w/ canopy: 3,599 pounds |
| Wheels: | All pneumatic, industrial polyurethane filled |
| Brake: | Dead Man style |
| Provided Accessories Include: | Tow Bar, Wheel Chocks, Transition Plate |
| Canopy: | Optional with capability to fit over fuselage of any aircraft |
| Range: | 54″ to 105″ ** |
| FAA Requirements: | Meets or exceeds all requirements as stated in A/C No: 150/5220-21C |
| Aircraft Locator Rod: | Provided |
| Surface: | 36″ wide, slip-resistant surface |
| Wind Standards: | Meets 90 MPH FAA requirement when stowed |
| Warranty: | 2-year warranty on manufacturing and material defects |
